Active Brace air
Active Brace

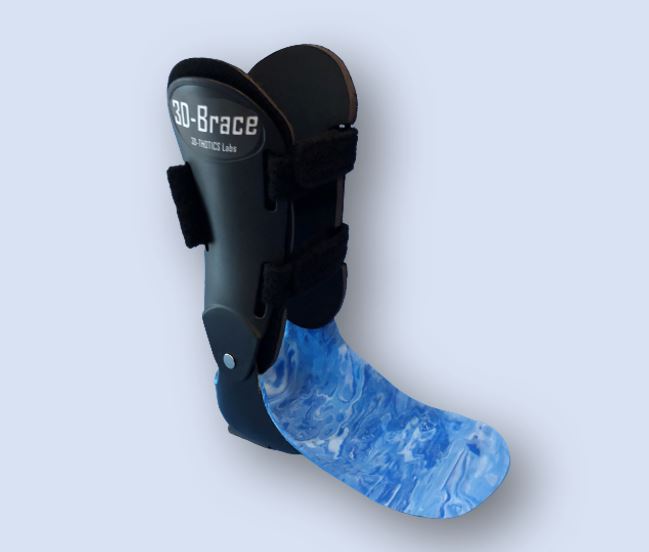

3D-Brace Standard
DESCRIPTION:
low profile foot plate and hinged ankle stirrup brace which is fully adjustable at the ankle with velcro straps and removable pads that can be washed,
Foot Plate Top cover options:
-EVA multicolor
-Plastazote/ppt (diabetic)
Foot Plate Top cover options:
-EVA multicolor
-Plastazote/ppt (diabetic)
USES:
PTTD, Ankle Instability
TECHNICAL SPECS:
Ankle Foot orthosis, plastic made of 4mm to 5mm Polypropylene, custom fabricated, Unilateral per foot
Deep heel Cup of 35mm, soft interface of 3mm Multicolor Eva or 3mm Plastazote.
with addition of 2 ankle axis hinges riveted to a 2 Stirrup Plate 3mm polypropylene Medial and Lateral perpendicular to Foot plate.
with an addition of 2 removable Pad soft interface of 5mm per side Medial and lateral attached to Stirrup plate
with 2 Anterior straps hoop and loop (velcro type) of 2.5mm
with 1 Posterior strap hoop and loop(velcro type) of 5 mm
Deep heel Cup of 35mm, soft interface of 3mm Multicolor Eva or 3mm Plastazote.
with addition of 2 ankle axis hinges riveted to a 2 Stirrup Plate 3mm polypropylene Medial and Lateral perpendicular to Foot plate.
with an addition of 2 removable Pad soft interface of 5mm per side Medial and lateral attached to Stirrup plate
with 2 Anterior straps hoop and loop (velcro type) of 2.5mm
with 1 Posterior strap hoop and loop(velcro type) of 5 mm
